Description of the TV lift NL1413 – Stroke 715 mm – 12 V DC
The NL1413 electric TV lift is a high-performance, bulkhead-mounted system designed for seamless integration into luxury marine interiors. Operating on a 12V DC power supply, this lift offers a smooth, silent and reliable vertical stroke of 715 mm, making it ideal for discreetly concealing and revealing flat screens up to 700 mm high. The mechanism ensures quiet operation and is built from marine-grade materials, including electro-galvanized steel and clear anodised aluminium, ensuring durability and resistance to saltwater conditions.
This TV lift is made from anodized aluminum and electro-galvanized steel, guaranteeing durability and resistance to marine environments. Compatible with VESA standards, it can accommodate screens up to 700 mm high. Its motorized system ensures smooth, silent movement, ideal for maintaining an elegant, functional layout.

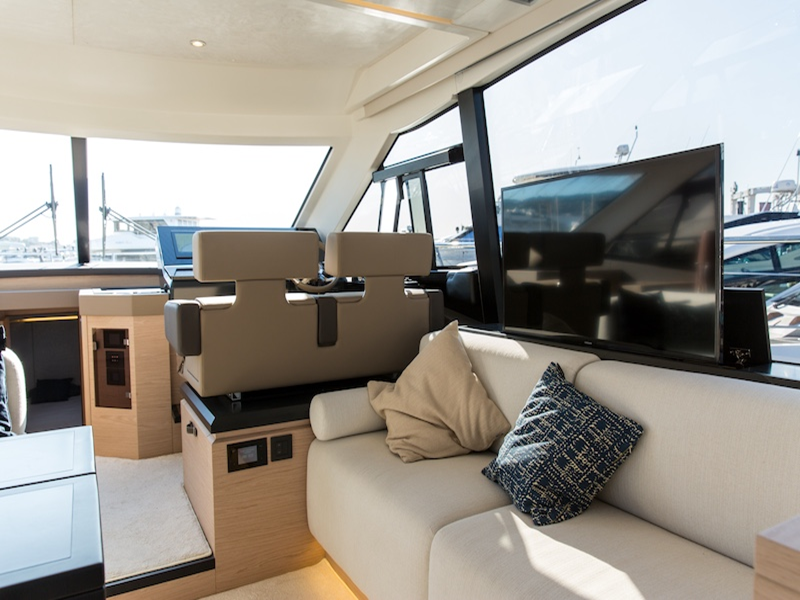

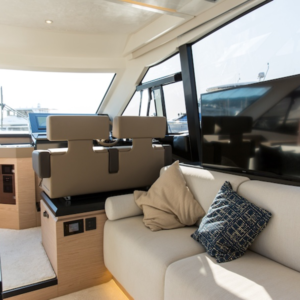

With its sleek design and robust construction, the NL1413 has been selected by leading yacht manufacturers and is notably featured aboard the Saxdor 460 GTX, where it complements the premium onboard entertainment system.
Specifications
- Type: Wall-mounted electric TV elevator
- Power supply: 12V DC
- Folded height: 885 mm
- Deployed height: 1600 mm
- Stroke: 715 mm
- Width: 700 mm
- Thickness: 58 mm
- Max. TV height: 700 mm
- Compatibility: Standard VESA brackets
- Lifting capacity: up to 30 kg
- Lifting speed: Approx. 20 mm/s
- Noise level: below 45 dB for quiet operation
Installation / Maintenance
Installation:
- Installation of the NL1413 is simple thanks to its wall-mounting system.
- To ensure smooth, safe operation, it should be securely fastened to a rigid structure.
Maintenance:
- Maintenance is minimal: regular dusting and an occasional check of the mechanism are all that’s needed to guarantee longevity.
- What’s more, some similar models offer built-in safety systems, such as obstacle detection, to prevent damage during use.
Our review
✔️ Pros :
- Easy installation and discreet integration.
- Robust, reliable mechanism.
- Ideal for use in marine environments and converted vehicles.
- Quiet operation, ideal for confined spaces.
❌ Cons :
- Power supply limited to 12V (use a converter if necessary).
- Fixed stroke without height adjustment.
- Lifting capacity limited to 30 kg, not suitable for heavier TV sets.
Conclusion
The NL1413 is an ideal solution for those looking for a discreet and efficient TV elevation system. Its optimized format for bulkhead mounting and ease of installation make it an excellent choice for yachts and vehicles where space is limited. However, make sure that the 12V power supply matches your installation and that the lifting capacity is appropriate for the weight of your TV. For heavier or larger TV sets, it would be wise to consider models with a higher lifting capacity.
Good to Know
- Powered by 12V DC – ensure a stable and protected supply for optimal performance.
- Compatible with VESA 75, 100, 200 – max TV height: 700 mm.
- Not designed for direct exposure to water – prefer interior or protected installations.
- Regular maintenance includes applying silicone spray on moving parts and rails.
- Optional remote control (AT5189) and current limitation / radio receiver control box (NL1270) available.
- Standard finish: black RAL 9005.
