Description of the motorized exterior ceiling TV lift NL3153 – CLTV 32”

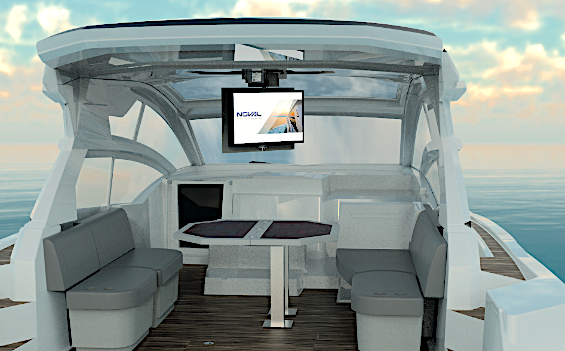

The NL3153 ceiling TV lift is part of the CLTV exterior range, specifically engineered for integration into outdoor yacht ceilings such as hard tops, flybridges or protected cockpit areas. Designed to accommodate flat screens up to 32 inches, this system combines compact dimensions, reduced weight and marine-grade construction, making it perfectly suited to modern leisure boats and luxury yachts.

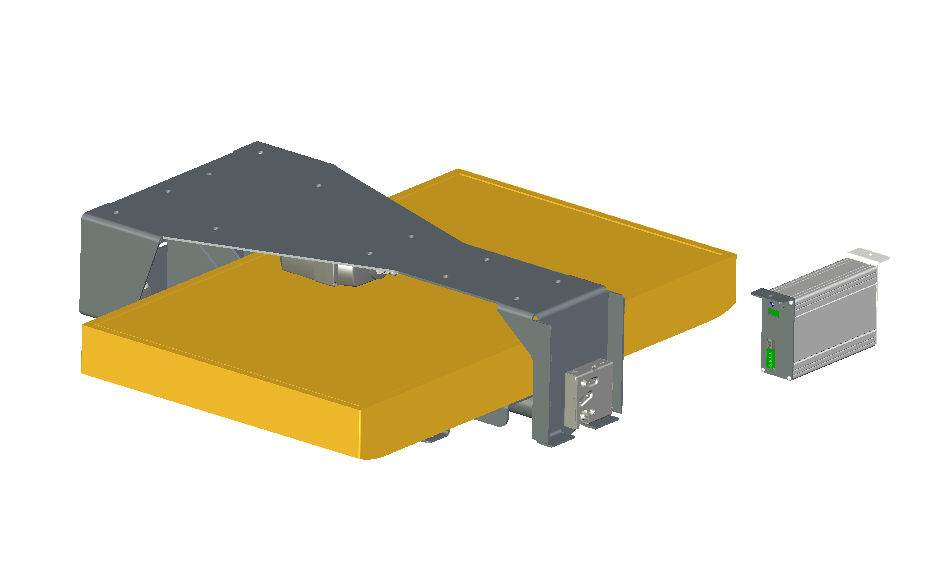

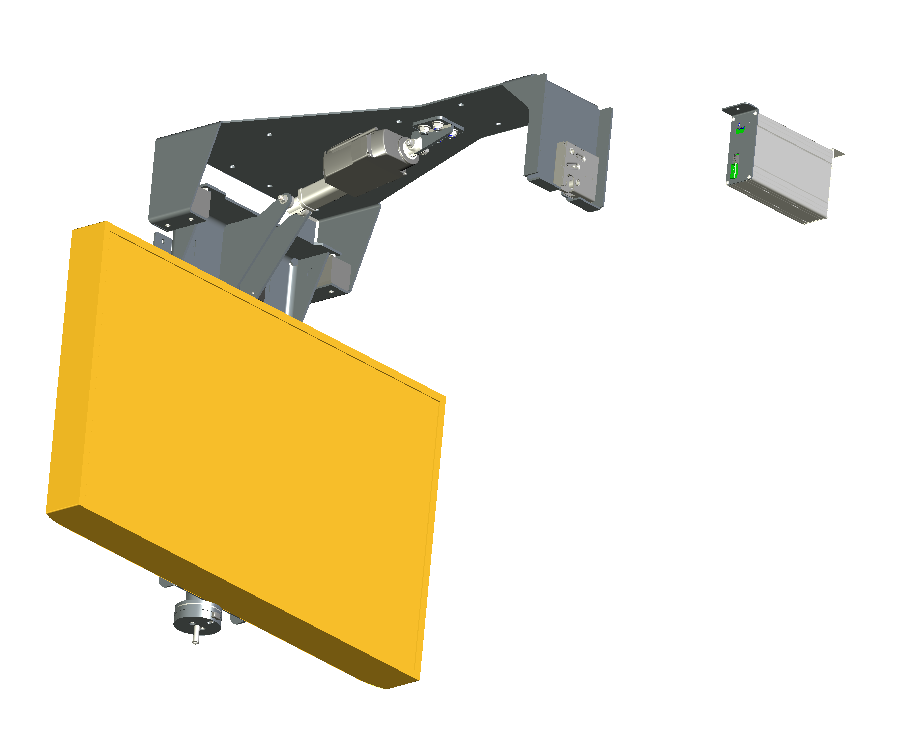

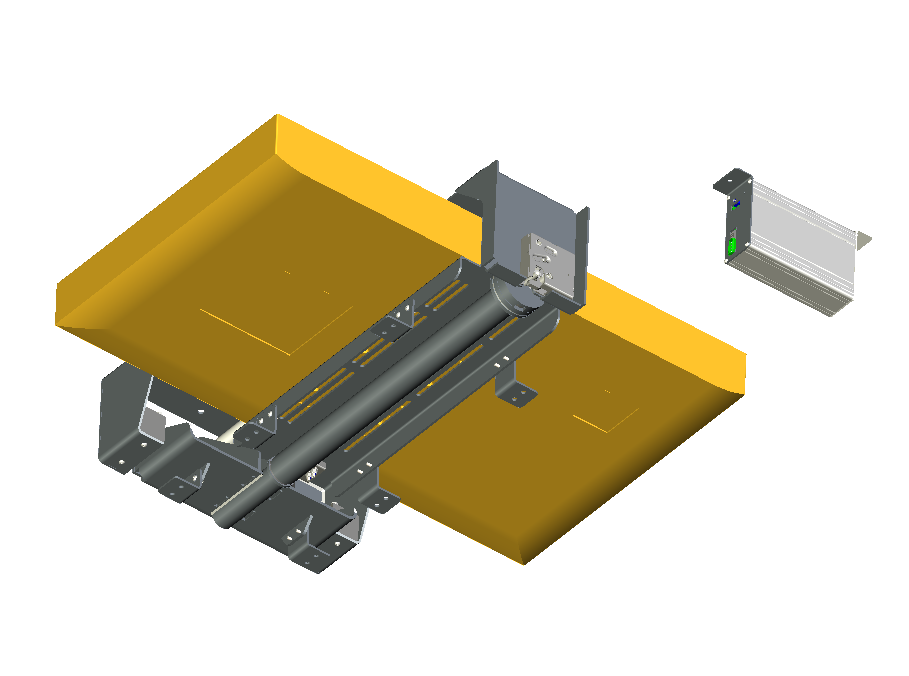

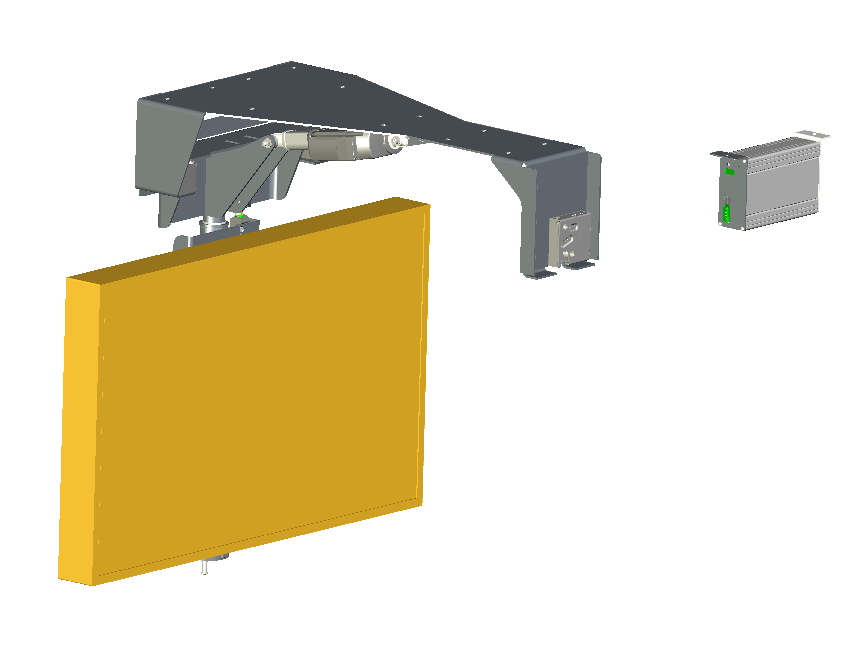

In its closed position, the television is fully retracted into the ceiling, ensuring a clean and unobtrusive finish that preserves the aesthetic harmony of the deck or cockpit. Once deployed, the TV can be oriented thanks to a manual swiveling system offering up to 180° of rotation, with 16 indexed positions. This allows optimal viewing angles regardless of seating configuration on board.
Powered by a 24V DC supply, the NL3153 features smooth, controlled movement and is equipped with a locking system in closed position. This safety mechanism prevents unwanted movement and vibrations while navigating, an essential feature for marine environments where stability and reliability are critical.
The chassis is finished in RAL 9016 matt white as standard, blending discreetly into most exterior ceiling finishes. Thanks to its compact footprint and light overall weight of only 9 kg (excluding TV), this model is particularly well suited to installations where structural constraints are limited.
Specifications
- Product reference: NL3153
- Range: CLTV – exterior ceiling TV lift
- Installation type: Ceiling-mounted (outdoor / exterior use)
- Maximum TV size: 32”
- Swiveling function: Manual rotation up to 180°
- Indexing: 16 indexed positions
- Power supply: 24V DC
- System weight: 9 kg (excluding TV)
- Standard color: RAL 9016 matt white
- TV mounting: VESA compatible
Main dimensions
- A: 672 mm
- B: 375 mm
- C (thickness): 189 mm
- D: 535 mm
- Maximum TV height: 454 mm
- Maximum TV thickness: 72 mm
- Maximum TV width: No limitation
Installation / Maintenance
Installation
- The NL3153 is designed for integration into a protected exterior ceiling, such as a hard top or covered cockpit.
- The supporting structure must be rigid enough to safely carry the system and the TV.
- Electrical wiring must be connected to a 24V DC protected circuit, compliant with marine electrical standards.
- Installation should preferably be carried out by a professional yacht builder or refit specialist.
Maintenance
- Rinse gently with fresh water in salt-heavy environments.
- Clean with a soft cloth; avoid abrasive products.
- Periodically inspect fasteners and swiveling mechanism.
- Light lubrication of moving parts is recommended during annual maintenance.
Our review
✔️ Pros :
- Compact and lightweight solution for exterior ceilings.
- Manual swiveling up to 180° with multiple indexed positions.
- Designed specifically for outdoor marine use.
- Discrete integration with clean ceiling finish.
- Low structural load, ideal for hard tops and flybridges.
❌ Cons :
- Limited to screens up to 32”.
- Swiveling is manual, not motorized.
- Requires a protected exterior installation.
Conclusion
The NL3153 motorized ceiling TV lift is an excellent choice for yacht owners and boat builders seeking a compact, reliable and discreet outdoor TV solution. Its lightweight design, combined with manual swiveling and secure locking in closed position, makes it particularly suitable for flybridges, cockpits and hard tops. While limited to 32” screens, it offers an outstanding balance between functionality, marine durability and ease of integration.
Good to Know
- Designed for exterior use in protected marine environments.
- TV not included.
- Manual swiveling range may be limited by TV cable routing.
- Available in other finishes upon request.
- Ideal for yachts, catamarans and premium leisure boats.
