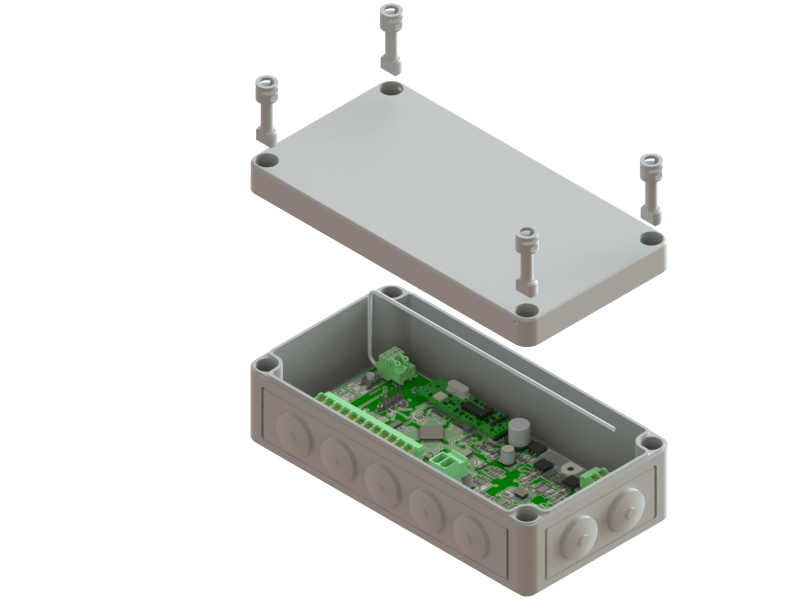

The NL1270 control box unit is an ideal solution for remote control of motorized systems, offering high reliability and advanced functionality. Designed to meet the needs of marine and industrial applications, it is compatible with radio transmitters such as the AT5189. This receiver can manage one or more pieces of equipment, and supports synchronization of two devices for optimum efficiency. Thanks to its robust design and IP66 protection rating, it is perfectly suited to marine environments. The NL1270 also offers a number of control options, such as backlit pushbuttons and other control modules, providing added flexibility for specific configurations.
Specifications
- Dimensions: 180 x 94 x 57 mm
- Compatibility: AT5189 transmitter, NL1494 switch and table stands, NOVAL TV elevators
- Features :
- Motorized device management
- Synchronizing two devices
- Support for advanced control options
- Materials: Corrosion-resistant and suitable for marine environments
- Protection class: IP66
- Supply voltage: 12V or 24V DC
Installation / Maintenance
To install, connect the box to a power source (12V or 24V DC) and to the devices to be controlled (table stands, for example). Check connections to ensure optimum compatibility. For maintenance, clean the housing regularly to prevent salt build-up, and inspect the connectors to prevent corrosion.
Our review
✔ Pros
- Highly versatile for single or synchronized systems
- Robust design for marine environments
- Easy installation thanks to broad compatibility
✘ Cons
- Modules or accessories required for specific applications
- Technical documentation for complex configurations can be brief
Conclusion
The NL1270 control box is a reliable choice for managing your motorized devices remotely. Its robust design, extensive compatibility and synchronization options make it an indispensable tool for demanding environments. Despite the need for additional accessories for certain functionalities, it is a quality solution for professionals and private individuals looking for precise, secure management of their equipment.
Good to Know
- Installed on the Oceanis Yacht 62 on each table legs
