Description of the NL3203, yacht motorized ceiling TV lift

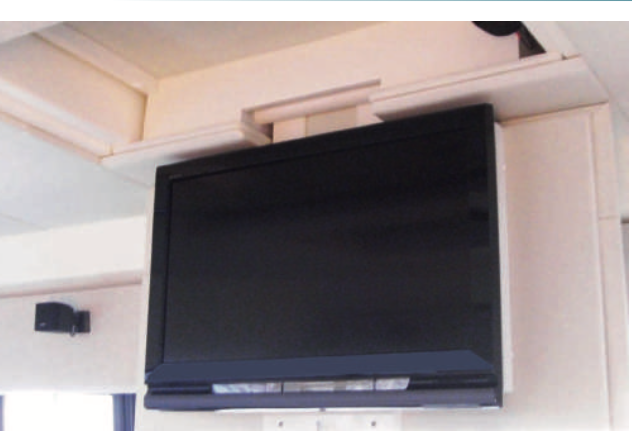

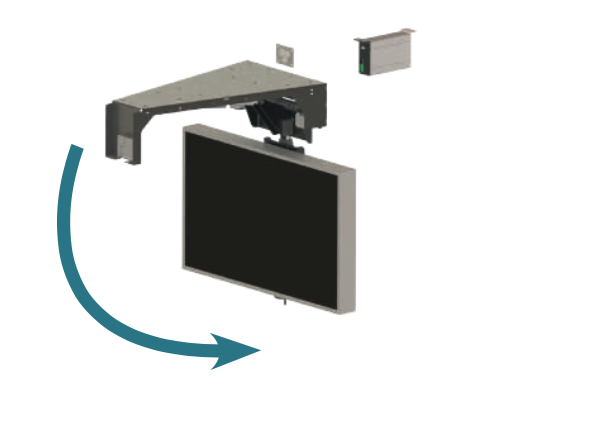

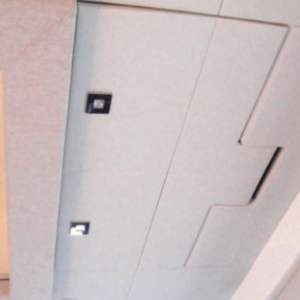

NOVAL Yacht’s NL3203 ceiling TV lift is the ideal solution for integrating a large-format TV (up to 55″) elegantly and discreetly into onboard living spaces. This top-of-the-range model is designed to be flush-mounted in the ceiling, and features smooth, motorized screen deployment and 180° (±90°) motorized orientation for optimum viewing angle, whatever the layout configuration of your cabin or interior space. Its precision mechanism enables silent ascent and descent, with progressive acceleration and deceleration of the deployment movement, while ensuring maximum safety thanks to its obstacle detection devices. When closed, the TV becomes completely invisible, perfectly aligned with the ceiling for an uncompromisingly aesthetic appearance. In this closed position, your screen is totally secured to the ceiling by a lock integrated into the system, protecting you from any unintentional or accidental deployment, even under severe structural stress. This model is ideal for indoor use, particularly in the saloons or main cabins of yachts or cruise ships. It can also be customized to meet specific requirements, for installation in homes, motorhomes or other mobility solutions.
Specifications
- Product reference : NL3203
- Type of installation: Ceiling-mounted
- Compatible screen/TV: up to 55″.
- Motorized swiveling: 180° (all stops possible within ±90°)
- System weight: 46 kg (101.5 lbs) (excluding display)
- Materials: Aluminium powder-coated RAL9005 matt black
- Supply voltage: 24 VDC (12 VDC possible via converter)
- TV mounting: VESA-compatible standards
- Safety: obstacle detection and locking in closed position
- Control: Radio and/or wired

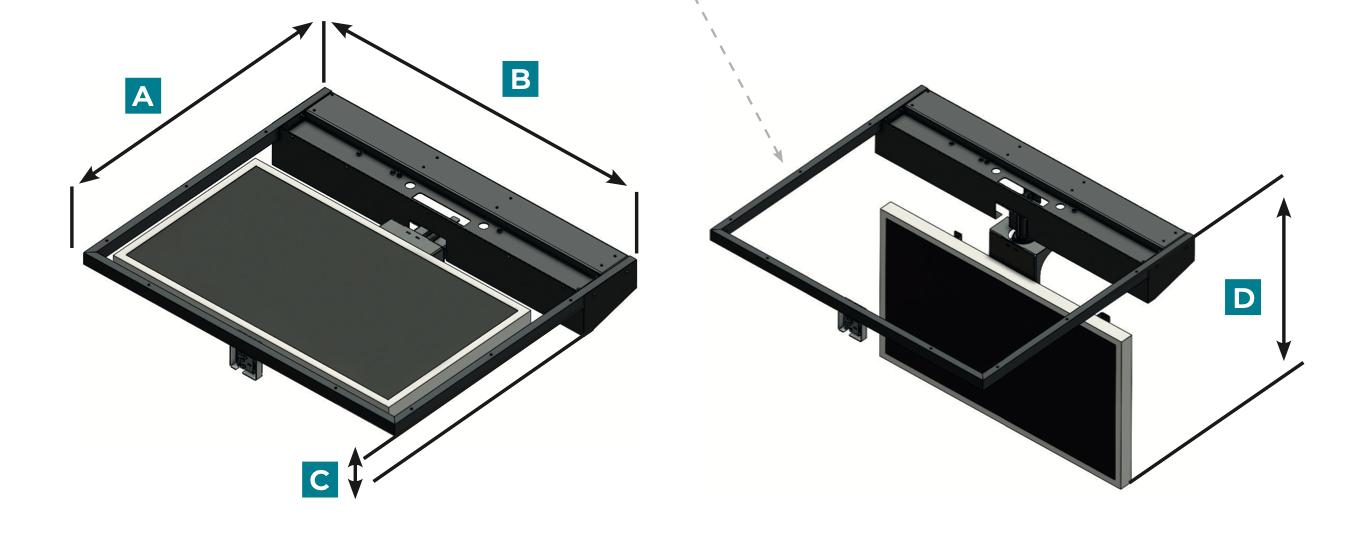

- Main dimensions :
- System footprint :
-
- A (depth) = 1,214 mm (47.79″)
- B (width) = 1,402 mm (55.19″)
- C (thickness) = 185 mm (7.28″)
-
- D (deployed height) = 1134 mm (44.65″)
-
- Maximum screen / TV dimensions :
- Height = 714 mm (28.11″)
- Thickness = 90 mm (3.54″)
- Width =
- 1238mm (48.74″) if the thickness of your screen / TV is greater than 25mm (0.98″)
- no maximum width if the thickness of your screen / TV is less than 25mm (0.98″)
- System footprint :
Installation / Maintenance
Installation
The NL3203 requires a ceiling cut-out corresponding to the frame dimensions. It must be carried out by a boating professional. The unit is supplied ready to install with the appropriate fastening systems. Wiring is to be carried out on a 24 V DC power supply line of at least 300W; an optional converter is available for 110 or 220 V AC supplies. The installation instructions are supplied with the product, and a link will be provided for you to download as soon as your purchase has been confirmed. Our technical experts will be happy to help you with your installation project. We can even help you to set-up this implementation project.
Maintenance
- Regular cleaning with a dry cloth
- Check fasteners twice a year
- Application of a silicone or lanolin lubricant on the pivot pins recommended annually.
Our review
✔️ Pros :
- High-quality aesthetics, totally invisible when folded up
- Motorized rotation and orientation with several possible positions
- Safety system with automatic stop in the event of an obstacle
- Premium materials for optimum durability in marine environments
- Quiet operation, ideal for confined spaces.
❌ Cons :
- High weight requires a suitable ceiling structure
- For indoor use only
Conclusion
The NL3203 TV elevator is an ideal choice for luxury yachts seeking to combine discretion, visual comfort and technology. Its ability to conceal a large screen and automatically orientate it makes it an elegant, functional solution that will appeal to the most demanding yachtsmen.
Good to Know
- The system is supplied without a TV.
- The system can be combined with a radio remote control (ref. AT5189) or a remote radio receiver (NL2034).
- A converter is available for 220V installations (ref. NL1273).
- Compatible with VESA standards for a wide range of TV sets.
- This TV lifter is installed, for example, on the motor and sailing catamarans LAGOON SIXTY7 and LAGOON SIXTY5.
- It can also be installed on other catamaran or motor yacht models, such as AZIMUT YACHTS, SUNREEF YACHTS, Fountaine Pajot: Alegria 67 or Thira 80.
- Average delivery time: 6 to 9 weeks after order confirmation.
