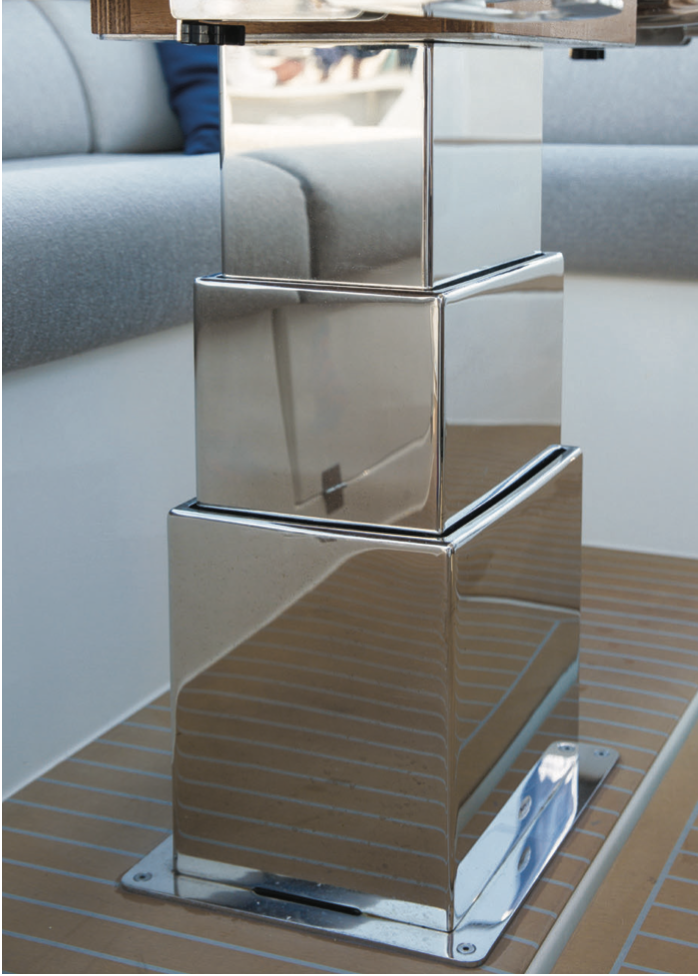

Description of the NL2636 – 3 stage boat table lift
The NL2636 is a high-end 3-stage electric table pedestal engineered for demanding marine environments. Crafted from mirror-polished 316 stainless steel, it ensures outstanding resistance to corrosion, making it perfectly suited for both interior cabins and exposed cockpit installations.
This motorized lifting system allows smooth and precise adjustment of the tabletop height, enabling effortless conversion of onboard living spaces. Whether transforming a saloon table into a berth or adapting a cockpit layout for relaxation, the NL2636 delivers exceptional versatility at sea.
Powered by a 12V DC system, it integrates seamlessly with standard onboard electrical networks. Its telescopic 3-section design provides an extended stroke while maintaining a compact footprint when retracted, ideal for optimizing confined marine spaces.
Designed with both performance and reliability in mind, the NL2636 supports a maximum load of 100 kg, ensuring stable and secure operation even in dynamic offshore conditions. :contentReference[oaicite:0]{index=0}
The generous plate dimensions (400 x 400 mm) offer enhanced stability for larger tabletops, making it particularly suitable for spacious saloons or luxury yacht configurations.
For larger installations, two units can be synchronized using a dedicated control box (reference NL2120), allowing perfectly balanced lifting of wide tables across twin pedestals.
Specifications
- Retracted height: 313 mm
- Deployed height: 637 mm
- Stroke: 324 mm
- Top plate dimensions: 400 x 400 mm
- Base plate dimensions: 400 x 400 mm
- Maximum load: 100 kg
- Speed: 15 mm/s
- Power supply: 12V DC – 10A
- Material: Mirror-polished 316 stainless steel
- Configuration: 3-stage telescopic column
- Use: Indoor and outdoor marine environments
Good to Know
- This model is ideal for converting a dining area into a sleeping berth or sunbed onboard.
- Synchronization of two lifts is possible with the NL2120 control unit.
- Also available in a 24V DC version under reference NL2637.
- Custom dimensions may be available upon request for specific yacht layouts.
Installation / Maintenance
Installation:
- Installation must be carried out on a solid deck or reinforced floor structure.
- A MOM OFF MOM switch is required for polarity reversal and lift control.
- Ensure proper cable routing and protection within the vessel’s electrical system.
- For synchronized setups, use identical cable lengths between units.
Maintenance:
- Rinse regularly with fresh water to remove salt deposits and preserve the polished finish.
- Apply a marine-grade lubricant (silicone or lanolin spray) on sliding sections.
- Inspect electrical connections periodically to ensure safe operation.
- Check mounting bolts and fixings after heavy sea conditions.
Our review
✔ Pros
- Robust 316 stainless steel construction for harsh marine environments
- Large plate dimensions ideal for wide tabletops
- Smooth and quiet motorized lifting system
- Excellent height range with compact retracted size
- Compatible with synchronized dual-leg installations
✘ Cons
- Requires 12V DC electrical connection
- Control switch and accessories sold separately
Conclusion
The NL2636 electric table lift is a premium choice for boat owners seeking both elegance and functionality. Its robust stainless steel construction, generous lifting capacity, and smooth operation make it perfectly suited for modern yacht interiors.
Whether outfitting a luxury saloon or optimizing cockpit space, this model offers outstanding flexibility and durability. For those looking to enhance onboard comfort and modularity, the NL2636 stands as a reliable and long-term investment.
Good to Know
- Pairing two units ensures optimal stability for large tables.
- Suitable for both sailing yachts and motor yachts.
- Maintains its mirror-polished finish with minimal upkeep.
- Can be integrated into custom marine furniture layouts.
