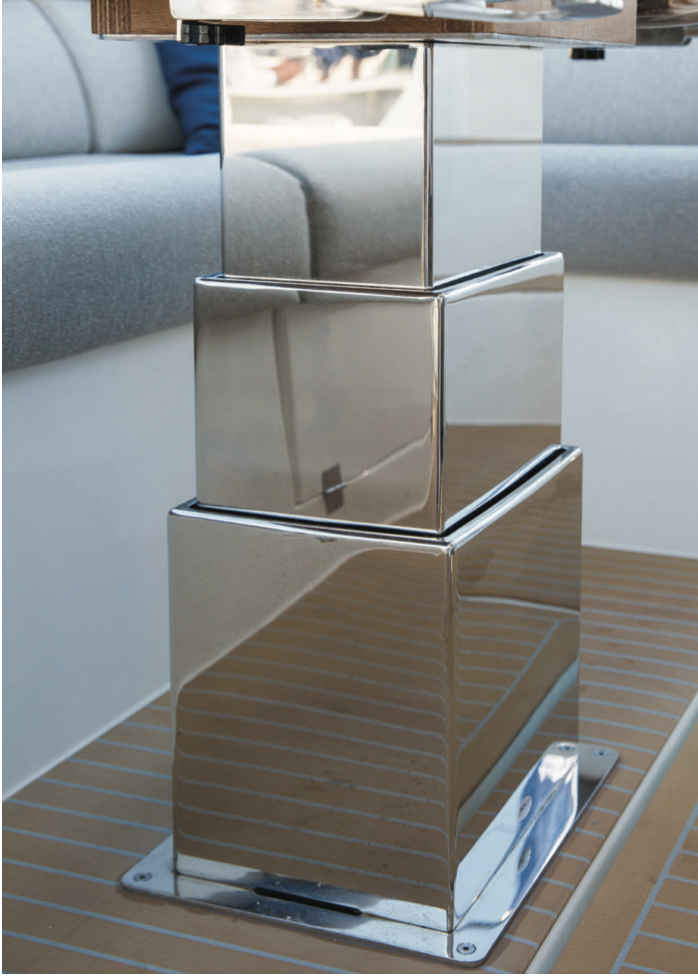

Description of the NL2214 – 3-stage boat table lift
The NL2214 is a high-end, three-stage electric table pedestal engineered in mirror-polished 316 stainless steel, making it perfectly suited for demanding offshore and onboard environments. Designed to withstand salt spray, humidity, and UV exposure, this unit embodies durability and refined nautical aesthetics.
This motorized lifting column allows for smooth and silent vertical adjustment, enabling seamless transformation of onboard living spaces. Whether in a yacht saloon or cockpit, it converts a dining table into a sunbed or sleeping berth with precision and ease.
Powered by a 12V DC system, the NL2214 ensures reliable operation onboard vessels where low-voltage systems are standard. Its three telescopic sections provide an extended stroke while maintaining excellent stability even in rough sea conditions.
The structure is designed to handle a maximum load of 100 kg, ensuring safe support for solid tabletops and onboard equipment. The lift can also be installed as a standalone unit or synchronized in pairs using the NL2120 control box, allowing for larger table configurations commonly found on luxury yachts and catamarans.
Its carefully engineered deck and tabletop plates ensure straightforward installation, while maintaining a clean and elegant finish consistent with modern marine interiors.
Specifications
- Retracted height: 350 mm
- Deployed height: 674 mm
- Stroke: 324 mm
- Speed: 15 mm/s
- Maximum load: 100 kg
- Power supply: 12V DC – 10A
- Material: Mirror-polished 316 stainless steel
- Structure: 3 telescopic stages
- Use: Indoor and outdoor marine environments
Installation / Maintenance
Installation:
- The lift is delivered with installation guidelines for quick and secure mounting onboard.
- A MOM OFF MOM switch is required for polarity reversal in wired configurations (optional accessory).
- For dual-leg installations, synchronization is achieved via the NL2120 control module, ensuring perfectly aligned movement.
- Ensure equal cable lengths when synchronizing two legs for optimal performance.
Maintenance:
- Rinse regularly with fresh water to remove salt deposits and preserve the stainless steel finish.
- Apply a marine-grade silicone spray on sliding sections to ensure smooth telescopic movement.
- Inspect electrical connections and mounting points periodically for safe operation at sea.
Our review
✔ Pros
- Exceptional corrosion resistance thanks to 316 stainless steel
- Wide height adjustment range with 3-stage mechanism
- Smooth and silent electric operation
- Compatible with synchronized dual-leg installations
- Ideal for optimizing onboard living space
✘ Cons
- Requires 12V DC onboard power supply
- Control systems and switches sold separately
Conclusion
The NL2214 electric table lift stands out as a versatile and seaworthy solution for enhancing onboard comfort and modularity. Its robust stainless steel construction, generous stroke, and reliable motorization make it perfectly suited for both leisure cruisers and luxury yachts.
Whether you aim to maximize cockpit usability or transform your saloon into a sleeping area, this pedestal delivers precision, durability, and elegance. A smart investment for any vessel where space optimization and premium finish are essential.
Good to Know
- The NL2214 can be paired with another unit using the NL2120 control box for large tabletops.
- Suitable for both interior cabins and exposed deck installations thanks to its marine-grade materials.
- Also available in a 24V DC version under reference NL2215.
