Description of the NL2637 – 3-stage boat table lift
The NL2637 is a high-end, three-stage electric table pedestal engineered specifically for marine applications. Crafted from mirror-polished 316 stainless steel, this robust unit is perfectly suited for both interior cabins and exposed cockpit installations, offering exceptional resistance to saltwater corrosion and marine wear.

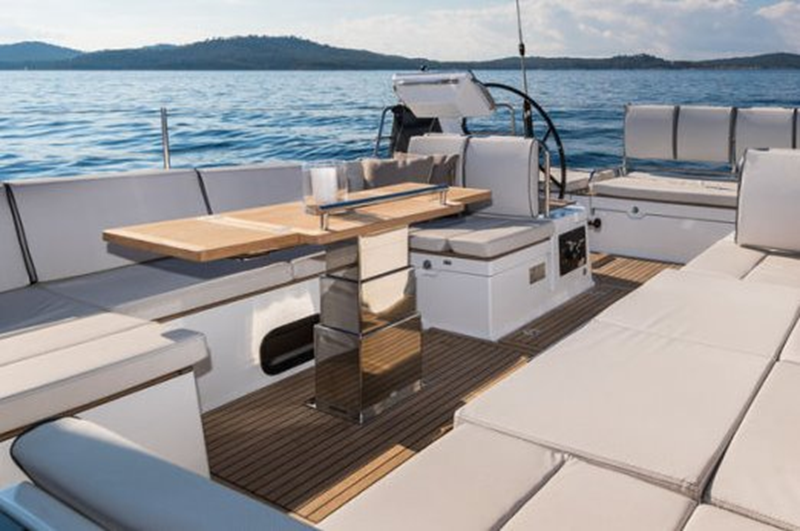

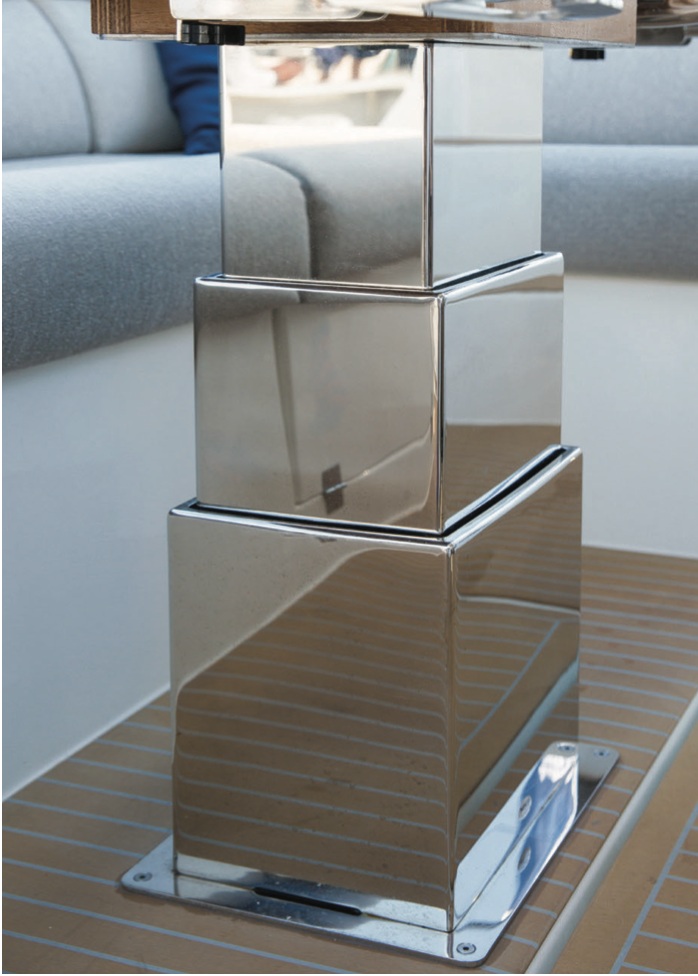

Its telescopic three-section structure allows for significant vertical travel, enabling seamless conversion of onboard furniture. Whether transforming a saloon table into a berth, a coffee table, or a sunbed, this lift delivers outstanding versatility and space optimization—an essential feature aboard modern yachts and catamarans.
Powered by a reliable 24V DC electric actuator, the NL2637 ensures smooth and quiet height adjustment at a consistent speed. Designed for demanding nautical conditions, it provides excellent stability even under load, making it ideal for daily onboard use.
This model features a square plate configuration (400 x 400 mm), offering enhanced support for larger tabletops and improved structural balance. It can be installed as a standalone unit or synchronized in pairs using the dedicated control box (ref. NL2120), allowing uniform movement for wider table surfaces. :contentReference[oaicite:0]{index=0}
With a maximum load capacity of 100 kg, the NL2637 combines strength, precision, and refined aesthetics—making it a perfect fit for luxury yachts and premium refits. :contentReference[oaicite:1]{index=1}
Specifications
- Retracted height: 313 mm
- Deployed height: 637 mm
- Stroke: 324 mm
- Deck plate: 400 x 400 mm
- Table top plate: 400 x 400 mm
- Maximum dynamic load: 100 kg
- Rising speed: 15 mm/s
- Power supply: 24V DC – 5A
- Material: Mirror-polished 316 stainless steel
- Configuration: 3-stage telescopic column
- Use: Indoor / outdoor (cockpit, saloon, flybridge)
Good to Know
- This model belongs to the premium NOVAL stainless steel range, renowned for marine-grade durability.
- It can be installed alone or paired with a second unit using the NL2120 synchronization module.
- Ideal for optimizing space onboard by converting multifunctional areas.
Installation / Maintenance
Installation:
- Requires a 24V DC onboard power supply.
- A MOM OFF MOM switch (ref. NL1494) is necessary for polarity reversal and control.
- For dual installation, synchronization via NL2120 control box is recommended.
- Ensure equal cable lengths when pairing two lifts for synchronized movement. :contentReference[oaicite:2]{index=2}
Maintenance:
- Rinse thoroughly with fresh water after exposure to salt spray.
- Lubricate sliding sections with silicone spray to ensure smooth operation.
- Regularly inspect electrical wiring and mounting bolts.
- Keep the lift under visual supervision during operation for safety. :contentReference[oaicite:3]{index=3}
Our review
✔ Pros
- High-grade mirror-polished 316 stainless steel for marine environments
- Powerful and smooth 24V electric actuation
- Large plate dimensions for enhanced stability
- Compatible with synchronized dual installation
- Ideal for multifunctional onboard layouts
✘ Cons
- Requires 24V DC electrical system onboard
- Control accessories sold separately
Conclusion
The NL2637 3-stage electric table lift stands as a premium choice for yacht owners and marine outfitters seeking reliability, elegance, and versatility. Its robust stainless steel construction, generous lifting range, and compatibility with synchronized systems make it ideal for optimizing onboard living spaces. Whether for refit or new build, this model delivers long-term performance in even the most demanding maritime conditions, making it a smart and durable investment.
Good to Know
- Synchronization of two lifts is essential for large tables and requires the NL2120 control unit.
- A 110–220V AC to 24V DC converter can be used for shore power installations.
- This model is the 24V version of the NL2636 (12V alternative).
