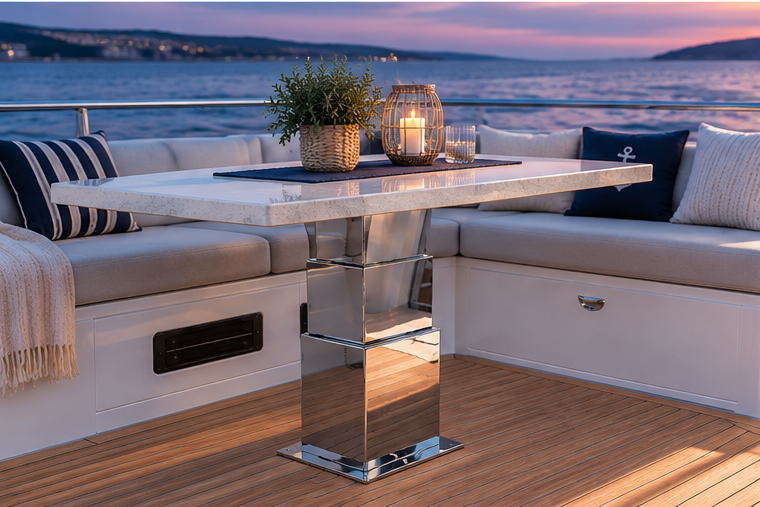

3-stage electric table lift in mirror-polished stainless steel 12V DC – NL2079

Description of the NL2079 – 3-stage electric table lift in mirror-polished stainless steel 12V DC

The NL2079 3-stage electric table lift in mirror-polished stainless steel 12V DC is specifically engineered for demanding nautical environments. Designed to equip sailing yachts, motor cruisers and catamarans, this electrically adjustable pedestal provides outstanding versatility for on-board furniture layouts.

Manufactured entirely from mirror-polished 316 stainless steel, the structure offers exceptional resistance to corrosion, salt spray and humidity. Its high-gloss finish blends perfectly with modern marine interiors, whether installed in the saloon, cockpit or owner’s cabin.

Thanks to its three-section telescopic system, the NL2079 provides a generous stroke of 324 mm, enabling the tabletop height to be adjusted from 313 mm (retracted position) to 637 mm (fully extended position). This configuration makes it easy to transform a dining table into a coffee table or convert a seating area into an additional berth.

The integrated 12V DC linear actuator ensures smooth and silent vertical movement at a lifting speed of 15 mm per second. Engineered for life at sea, the system guarantees reliable operation even under dynamic marine conditions. With a maximum dynamic load capacity of 100 kg and a static self-locking capacity of 200 kg, the lift ensures excellent stability both at anchor and underway.

The compact deck and tabletop mounting plates (355 x 280 mm) facilitate straightforward installation while maintaining optimal load distribution across the sole and tabletop structure. For larger installations, two lifts can be synchronized via an optional control box, ensuring perfectly coordinated movement under wide or heavy tabletops.

Specifications

• Retracted height: 313 mm
• Extended height: 637 mm
• Stroke: 324 mm
• Number of stages: 3
• Deck plate dimensions: 355 mm x 280 mm
• Top plate dimensions: 355 mm x 280 mm
• Maximum dynamic load: 100 kg
• Maximum static load (self-locking): 200 kg
• Lifting speed: 15 mm/s
• Power supply: 12V DC – 10A
• Material: Mirror-polished 316 stainless steel
• Application: Interior and exterior marine use

Good to Know

• The 316 stainless steel construction is perfectly suited for offshore and coastal cruising thanks to its superior corrosion resistance.
• The self-locking actuator secures the tabletop in position without additional locking devices.
• Suitable for installation in saloons, cockpits, flybridges or convertible cabin areas.
• Two units can be paired for larger table configurations using a dedicated synchronization control box.

Installation / Maintenance

Installation:

• Installation guidelines are supplied with the lift to ensure proper mounting on board.
• A MOM-OFF-MOM polarity reversing switch is required for wired control operation.
• Ensure the vessel’s 12V DC electrical circuit is properly protected and fused.
• When installing in cockpit or exposed areas, verify proper sealing of deck fixings to maintain watertight integrity.

Maintenance:

• Rinse thoroughly with fresh water after exposure to salt spray to preserve the mirror-polished finish.
• Apply silicone or lanolin spray on the sliding sections periodically to reduce friction and ensure smooth telescopic movement.
• Inspect electrical wiring and mounting bolts regularly, especially after extended passages.
• Polish stainless steel surfaces with suitable marine-grade products to maintain shine.
