Electric table lift NL2388 – 3-stage rectangular aluminium – 12V DC

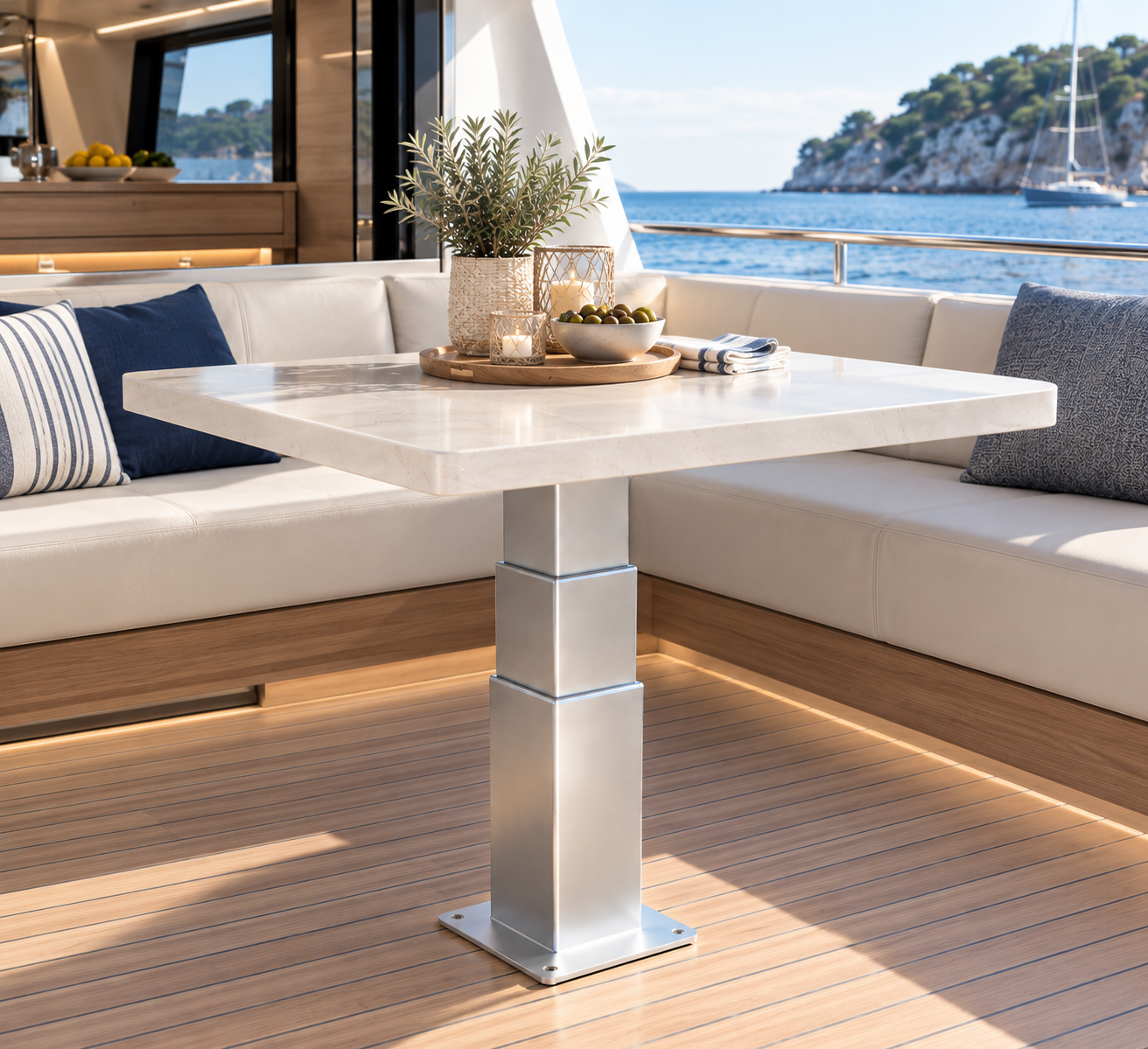

The NL2388 electric table lift is a 3-stage, rectangular-section aluminium system running on 12V DC, designed for modern yachts and boats. This electric table leg provides a vertical stroke of 400 mm, from 358 mm retracted to 758 mm fully extended. The same table can serve as a dining table, a coffee table or a base for converting a cockpit seating area into a sundeck. On board, every square metre counts, so this versatility is a real advantage on day-boats, cruising yachts and motor boats, many of which run on a 12V network.
The table pedestal is made of 20-micron clear anodized aluminium, which gives lasting corrosion resistance in the salty, humid conditions of the marine environment. Two identical 200 x 200 x 8 mm plates fix it to the deck and to the table top, giving a stable mounting on the cockpit sole or the saloon floor. At 11.2 kg, the unit stays easy to handle during fitting-out or refit work.
The height is not limited to two fixed positions: this electric table stand can stop at any level within its range, so the owner chooses the exact height for each use. Lifting speed is 18 mm/s with no load and 9 mm/s under load, for smooth and precise movement. The NL2388 accepts a dynamic load of 50 kg and a static load of 100 kg, rising to 200 kg with compression locking. This is enough for a solid table top and for normal use as a sunbed base.
Working with dry contacts, this motorized table base is simple to integrate. It can be operated by a single momentary switch, or, with the right control boxes, paired with a second leg or driven by a radio remote control. For a large table top, two NL2388 units can be synchronized so they move together and stay level.
Electric table lift NL2388 – Specifications
- Type: 3-stage electric table lift, rectangular section
- Power supply: 12V DC / 10 A
- Retracted height: 358 mm (14.09″)
- Max. height: 758 mm (29.84″)
- Stroke: 400 mm (15.75″)
- Table top mounting plate: 200 x 200 x 8 mm (7.87 x 7.87 x 0.31″)
- Deck mounting plate: 200 x 200 x 8 mm (7.87 x 7.87 x 0.31″)
- Dynamic load: 50 kg
- Static load: 100 kg (200 kg with compression locking)
- Speed, no load: 18 mm/s (0.71″/s)
- Speed, under load: 9 mm/s (0.35″/s)
- Material: 20-micron clear anodized aluminium
- Total weight: 11.2 kg (24.7 lbs)
Electric table lift NL2388 – Installation / Maintenance
Installation:
- Single leg, switch control: connect the unit to the 12V supply through a momentary MOM-OFF-MOM switch (NL1494).
- Single leg, remote control: add the NL1270 control box with radio receiver.
- Two synchronized legs: for large table tops, use the NL2120 synchronized control box, which also acts as a radio receiver for the AT5189 remote control.
- Cable length: keep each cable run under 5 metres. With synchronized legs, balance cable lengths between each leg and the control box.
Maintenance:
- Rinse the aluminium surfaces regularly with fresh water.
- Apply silicone spray or lanolin to the moving parts to limit friction.
Electric table lift NL2388 – Our review
✔️ Pros :
- Sturdy anodized aluminium build suited to the marine environment.
- Height can be set at any point within the 400 mm stroke.
- Runs directly on a 12V boat network, common on day-boats and smaller yachts.
- Synchronization of two legs possible for large table tops.
❌ Cons :
- Switch, control box and remote control are sold separately.
- Dynamic load limited to 50 kg.
- Other colours available only for orders of 10 pieces or more.
Electric table lift NL2388 – Conclusion
The NL2388 is a good choice if you want one table to serve as a dining table, a coffee table and a sundeck base on a boat with a 12V DC network. Its 400 mm stroke, free choice of height and corrosion-resistant aluminium make this table stand a reliable option for new builds and refits. Before ordering, check three points. First, your onboard network must be 12V; for 24V boats, choose the NL2389. Second, the table top and its expected use must stay within 50 kg dynamic load. Third, decide on the control setup you need: a switch, a remote control, or two synchronized legs. For very large or heavy table tops, fit two synchronized NL2388 units.
Electric table lift NL2388 – Good to Know
- Powered by 12V DC / 10 A. The NL2389 is the 24V DC version.
- Can be synchronized with a second NL2388 through the NL2120 box.
- Optional AT5189 remote control, NL1494 rocker switch and NL1270 control box / radio receiver available.
- Dry-contact operation: compatible with NMEA 2000 and CAN bus monitoring systems through a converter box.
- Standard finish: clear anodized aluminium. Other colours available for orders of 10 pieces or more.
Our review
✔ Pros
- Robust, durable design adapted to the marine environment
- Quick, precise height adjustment
- Easy to install and use
✘ Cons
- Accessories such as switch, remote control or control box not included by default
- No possibility of changing the color for orders of less than 10 pieces
Conclusion
The NL2388 electric lift combines functionality and design to meet the needs of demanding users. Whether for a yacht or a high-end residential installation, it offers exceptional versatility and robustness. It’s a smart choice for modernizing and optimizing your indoor and outdoor spaces.
Good to Know
The NL2388 can be synchronized with a second foot for larger tables. Accessories, such as a control box or remote control, are available as optional extras to further personalize your installation. Model The NL2389 is the 24V DC version of the NL2388 table lift.
All these elements operate with dry contacts and are therefore compatible, via converter box, with centralized management systems and protocols such as: NMEA 2000, CAN bus.
