Description of the electronic control box NL0129
The NL0129 electronic control unit is the central command module for NOVAL’s ATC motorized sliding roof and sunshade systems. Engineered to manage both drive motors and end-of-travel compression seals, it provides seamless integration with roof dimensions tailored for a wide range of marine vessels. Installed on Jeanneau Leader 46 and Leader 40, DB43, Prestige 440S and 38S, Bénéteau Gran Turismo GT40, GT38 and GT32, Monte Carlo 32 as well as the Galeon 435 GTO, and Sessa C42, this OEM unit guarantees perfect mechanical harmony and optimized performance at sea.
This control unit monitors the roof position, regulates motor torque, integrate the sensors feedbacks and stops the sun awning panel at the end of travel to maintain watertight integrity. Built with marine-grade electronics and protective housing, the NL0129 withstands humidity and salt exposure typical of yacht cockpit environments.
Specifications
- Model: NL0129
- Type: OEM Electronic control unit for indoor installation
- Application: Piloting NOVAL ATC sunroofs
- Power Supply: Via central Noval control box (standard 12V or 24V DC through system harness)
- Material: Corrosion-resistant marine-grade components / Anodized AL casing
- Functionalities:
- Drive motor
- Controls sensors or limit-switch inputs
- Overcurrent protection and motor stall detection
- Plug‑and‑play connectivity to NOVAL wiring harnesses (wiring diagram downloadable once the purchased is confirmed)
- Mounting: Flush or surface mounting, depending on yacht layout
- Environmental Resistance: Conforms to IP protection standards used in Noval systems
- Compatible with:
- JEANNEAU – Leader 46 / Leader 40 / DB 43
- PRESTIGE – Prestige 440S and 38S
- BENETEAU – Gran Turismo 40 (GT40) Gran Turismo 38 (GT38) / Gran Turismo 32 (GT32) / Monte Carlo 32

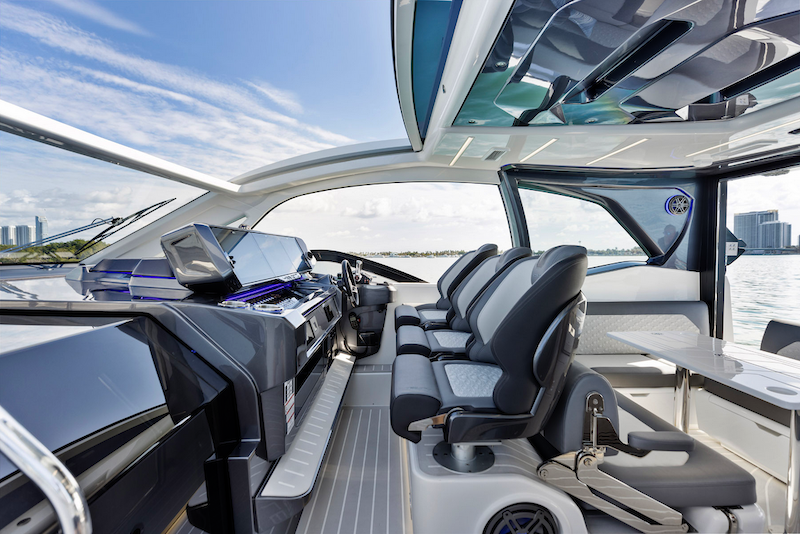

- GALEON – 435 GTO
- SESSA – C42
Installation / Maintenance
Installation:
- Mount the unit in a well‑ventilated protected compartment near the roof drive system.
- Connect the NL0129 by plugging into the OEM NOVAL harness linking roof motors, power supply, and limit sensors (already wired on your boat).
- Follow all Noval safety guidelines: power should be off during installation.
Maintenance:
- Routine inspection during vessel maintenance (twice per year recommended):
- Inspect connectors and wiring periodically for corrosion or looseness.
- Rinse exposed housings with fresh water after coastal use.
- Verify roof travel on the complete cycle regularly to detect any motor (NL0242) sluggishness or irregular sealing. In case of malfunction, replacement of NL0129 should promptly restore reliable roof operation.
- Inspect the drive belt for any tearing, fatigue indicators, or missing teeth.
- Ensure the belt is properly secured to the metal hook connecting it to the roof panel, using 4 to 8 screws on the belt connecting bracket (NL0246), depending on production year.
- Check the 2 sensors located at the front and the rear of the motorization rail.
- Clean the rails and sliders of the sunroof GRP panel to remove any dust or dirt with a dry or lightly damp cloth—do not use high-pressure water jets. Once it is clean, apply a silicon spray or lanolin based spray to ease the slide (a minimum of twice per year – more in really dusty environnement).
Our review
✔ Pros
- Genuine OEM component ensuring full compatibility and seamless function
- Directly addresses motor drive, roof positioning, sensors
- Designed for maritime conditions with robust, weather‑resistant electronics
- Facilitates fast swap in case of control box failure, minimizing downtime at sea
✘ Cons
- Does not come with the roof motor or actuators—it is the control unit only
- Requires correct matching harness and authorized installation to avoid warranty issues
Conclusion
As the nerve centre behind NOVAL ATC sliding roof installations, the NL0129 is essential for any vessel fitted with this system. If your roof refuses to open or close properly due to electronic fault, replacing the control unit is often the most effective remedy. Its OEM build and full compatibility with specific Jeanneau, Bénéteau, and Galeon models mean you gain back the intended smooth, watertight motion. We recommend this unit for any boat owner experiencing drive issues, seeking reliability, or conducting preventive replacement to ensure continuous comfort at sea.
Good to Know
NOVAL sliding roofs rely on a precise coordination between motor drive and end of stroke positions. A malfunctioning control unit can lead to incomplete closure, water ingress, or motor overload. When ordering NL0129, verify you have the corresponding NOVAL wiring harness and ensure the roof track and belts are well maintained. NauticSpares has successfully fitted NL0129 units during full-service interventions, including belt adjustments and rail lubrication, to fully restore ATC roof performance.
