Description of Gas Strut AT7382 – S10PBC0350

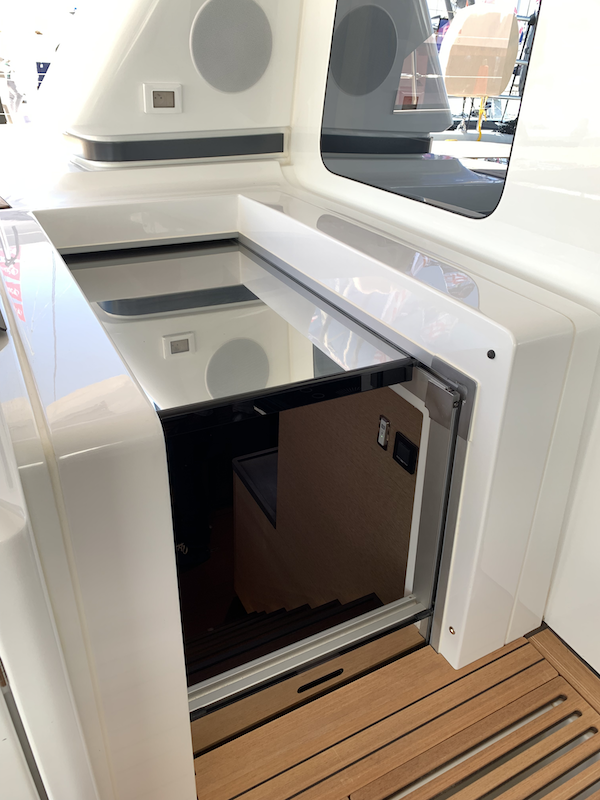

Tailored for yachts equipped with manual or motorized operated NOVAL companionway systems, the AT7382 gas strut facilitates the ergonomic handling of the companionway hatch on the LAGOON SEVENTY 7, CNB76 and CNB66 models. Installed within the vertical sliding door mechanism of the companionway assembly, this component significantly eases the user’s or motor effort during operation by absorbing the load of the sliding PMMA panel.
By counterbalancing the weight of the sliding panel, it ensures a controlled, soft movement, that enhances both user comfort and system durability. This strut is critical for maintaining safe and user-friendly manual operation where no electrical assistance is available.
Specifications
- Reference: NOVAL ref = AT7382 – Ressorts Spec ref = S10PBC0350
- Designation: Gas strut for NOVAL companionway hatch system
- Compatibility: CNB76 / CNB66 / LAGOON SEVENTY 7
- Weight: Approx. 0.5 kg
- Dimensions (approx.): 70 x 5 x 5 cm
- Installation mode: Inside companionway mechanism (vertical section)
Installation / Maintenance
Installation
- Installation involves integrating the gas spring within the companionway panel’s internal frame.
- It is pre-charged and configured for optimal support, requiring only mechanical fixation to predefined anchor points.
Recommended Maintenance
- Periodic inspection is advised to verify integrity and pressure retention.
If signs of weakening or fluid leakage appear, replacement is recommended to maintain performance. - Lubricate the pivot points (ball joints) of the gas struts once or twice a year using a light marine grease.
This helps maintain smooth operation, reduce wear, and prevent corrosion in the marine environment.
Our review
✔ Pros
- Provides mechanical lift-assist for smooth companionway operation
- Simplifies manual handling of descent panel
- Durable and maintenance-free design
- Compact and easy to install
✘ Cons
- Only accessible by opening the lower recess of the mechanism
- Requires precise positioning to function correctly
Conclusion
Ideal for yachts having a NOVAL companionway, the AT7382 gas strut is a high-value upgrade that adds comfort, safety, and longevity to the LAGOON Seventy7, CNB76 and CNB66 companionway hatch system. With its low maintenance and marine-grade reliability, it’s a dependable ally for both daily cruising and extended voyages.
Good to Know
- This gas strut is not refillable and must be replaced if its pressure assistance diminishes over time. Always use OEM parts to preserve the integrity and safety of your descent system.
- The AT7382 is one of the original components of the NOVAL reference NL1201 companionway hatch, along with parts such as: NL1290 (interior keyboard – manual version), NL1288 (keyboard panel – motorized version), NL2070 (digital key’s control box ), AT5964, AT5186, AT5121-PO7X (vertical belt), and AT5121-PA7X (horizontal belt), AT1113 and AT3916 sliding gasket.
