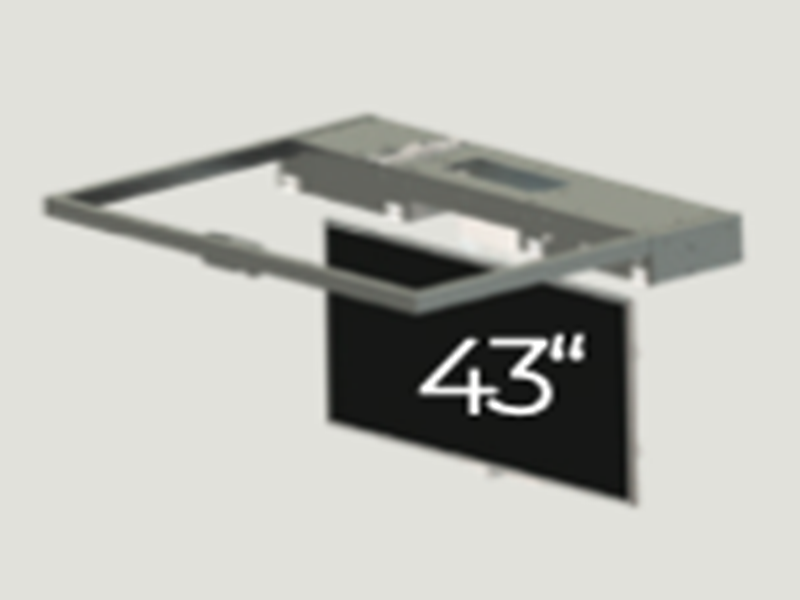

Ceiling-mounted exterior electric TV lift NL3277 for yachts
The NL3277 ceiling-mounted electric TV lift is specifically engineered for outdoor marine environments, where exposure to humidity, temperature variations and vibrations requires reinforced design and materials. This system enables the discreet integration of a flat-screen television into the ceiling of a hard top, cockpit roof or sheltered exterior living area on board yachts and luxury boats.
Designed to support televisions up to 43 inches, the NL3277 allows the screen to be completely hidden when not in use, protecting it during navigation and preserving clean exterior lines. When deployed, the TV lowers smoothly into position, providing comfortable viewing in outdoor lounges, flybridges or aft cockpits.
The structure of the NL3277 is built around a rigid aluminium frame combined with marine-grade components, ensuring long-term durability in demanding nautical conditions. Its design prioritizes strength and stability, making it suitable for installations exposed to vibrations and dynamic loads typical of navigation.
In the closed position, the system features an automatic locking mechanism that secures the TV in place, preventing any unwanted movement during sailing or motor cruising. This locking system also contributes to protecting both the mechanism and the screen from shocks and fatigue over time.
The NL3277 operates on a 24V DC power supply, fully compatible with standard onboard electrical systems. Control can be achieved via optional radio remote control or integrated into existing onboard control architectures, offering ease of use and seamless operation.
Unlike swivel-equipped models, the NL3277 is designed without rotation, favoring simplicity, reliability and robustness for outdoor use. This makes it an ideal choice for fixed viewing zones where durability and protection are more critical than orientation flexibility.
Thanks to its proven architecture and outdoor-rated design, the NL3277 is frequently selected by yacht builders and refit professionals for high-end exterior entertainment installations requiring a reliable outdoor ceiling TV lift.
Specifications
- Product reference: NL3277
- Type: Ceiling-mounted electric TV lift
- Installation: Exterior / outdoor marine use
- Maximum TV size: Up to 43″
- Rotation: No swivel
- Power supply: 24V DC
- TV mounting: VESA compatible
- System weight: 26 kg (excluding TV)
- Materials: Aluminium frame with marine-grade components
- Standard color: RAL 9016 matte white
- Main dimensions:
- A: 955 mm
- B: 1,090 mm
- C: 154 mm
- D: 622 mm
- Maximum TV dimensions:
- Height: 605 mm
- Thickness: 78 mm
- Width: 1,076 mm
Installation / Maintenance
Installation
- The NL3277 must be installed in a rigid and reinforced ceiling structure, such as a hard top or fixed exterior roof.
- All fixings must be secured according to marine installation standards to withstand vibrations and weather exposure.
- Electrical wiring must be connected to a protected 24V DC circuit.
- Professional installation by a yacht builder or marine technician is strongly recommended.
Maintenance
- Regular inspection of fixings and locking mechanisms is advised, especially on frequently navigated vessels.
- Clean visible surfaces with fresh water and a soft cloth to remove salt residues.
- Periodic checks of electrical connections help ensure long-term reliability.
Our review
✔️ Pros :
- Designed specifically for exterior marine installations.
- Automatic locking in closed position for navigation safety.
- Compact and robust aluminium structure.
- Compatible with standard VESA TV mounts.
- Ideal for hard tops, cockpits and outdoor lounges.
❌ Cons :
- No swivel or rotation function.
- Limited to screens up to 43″.
- Requires careful sealing and professional installation.
Conclusion
The NL3277 ceiling-mounted exterior TV lift is an excellent solution for yachts requiring a reliable and discreet outdoor television installation. Its robust design, secure locking system and marine-ready construction make it particularly well suited for cockpits and hard tops. While it does not offer rotation, its simplicity and durability make it a dependable choice for exterior entertainment areas on board.
Good to Know
- The system is supplied without the TV.
- 24V DC power supply required; converters available if needed.
- Designed exclusively for protected outdoor marine environments.
- Standard matte white finish (RAL 9016) blends well with yacht exteriors.
