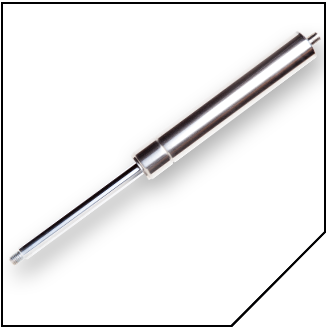

Description of the Gas spring assembly 100092
Crafted entirely from 316L stainless steel, the 100092 gas strut is built to endure the harsh marine environment. Its superior corrosion resistance makes it ideal for installation in areas exposed to saltwater spray and constant humidity. The smooth-operating plastic ball socket ends ensure both flexibility and ease during installation and removal, without the need for additional fasteners or special tools.
Thanks to its 120 mm stroke and 300 N force, this model is particularly suited for lifting and holding heavy components such as engine room hatches, deck lockers, or cockpit access doors. The gas spring also plays a key role in damping movement, preventing sudden closures and reducing the impact of wave motion.
Specifications
- Total length with end fittings: 316 mm
- Length without end fittings: 280 mm
- Compressed length with end fittings: approx. 196 mm
- Stroke: 120 mm
- Force: 300 N
- Material: Full 316L stainless steel construction
- End fittings: Black plastic ball sockets with quick-locking system
- Compatibility: Factory-fitted on DUFOUR boats
Installation & Maintenance
Installation:
- Ensure all mounting points are clean and corrosion-free before installation.
- Verify that both the length and force match the original specifications for your equipment.
- Clip the end fittings into place using the integrated ball sockets—no tools required.
- If using more than one strut, make sure they are mounted symmetrically to balance the load evenly.
Maintenance:
- Inspect regularly for signs of wear or corrosion, especially at mounting points.
- Rinse with fresh water after exposure to salt and dry with a clean cloth.
- Use a marine-grade lubricant (e.g. silicone spray) on joints to maintain smooth operation.
Our review
✔ Pros
- High-grade stainless steel body ensures long-term corrosion resistance
- 300 N of force suitable for lifting heavy marine components
- Quick and tool-free installation with black plastic ball joints
✘ Cons
- High force may be excessive for lightweight panels—check compatibility before installation
- Plastic end fittings may wear faster than stainless steel alternatives in heavy-duty applications
Conclusion
The 100.092 marine gas strut is a dependable and corrosion-resistant solution for lifting and supporting heavy components aboard sailing yachts. Designed for tough marine environments, this stainless steel model is an excellent investment for both replacements and upgrades. Its user-friendly installation and robust build quality make it an optimal choice for DUFOUR yachts and similar vessels.
Good to Know
- For installations using multiple gas struts, always balance their positions to ensure uniform support and prevent stress on fittings.
- Make sure your ball sockets are mounted on solid and clean anchor points to ensure optimal performance and longevity.
- Corrosion resistance tested according to ASTM B117 standard (details available at: https://www.astm.org/b0117-19.html).
