Ceiling-mounted electric TV lift NL0447 for yachts – compact interior solution

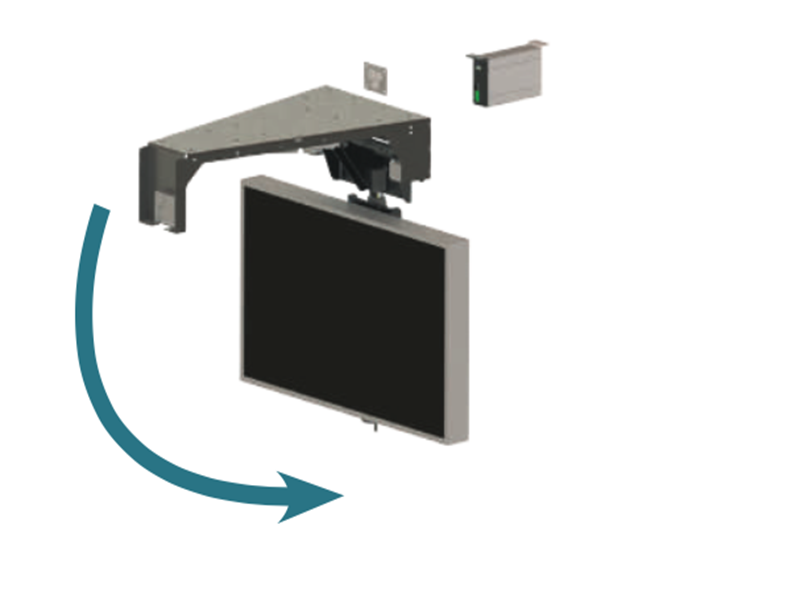

The NL0447 ceiling-mounted electric TV lift is a refined solution for yacht builders, refit shipyards and boat owners seeking to integrate a television into the ceiling without compromising interior design. Designed for interior marine installations, this system allows a flat screen up to 32” to be hidden above the headliner and smoothly deployed when required.

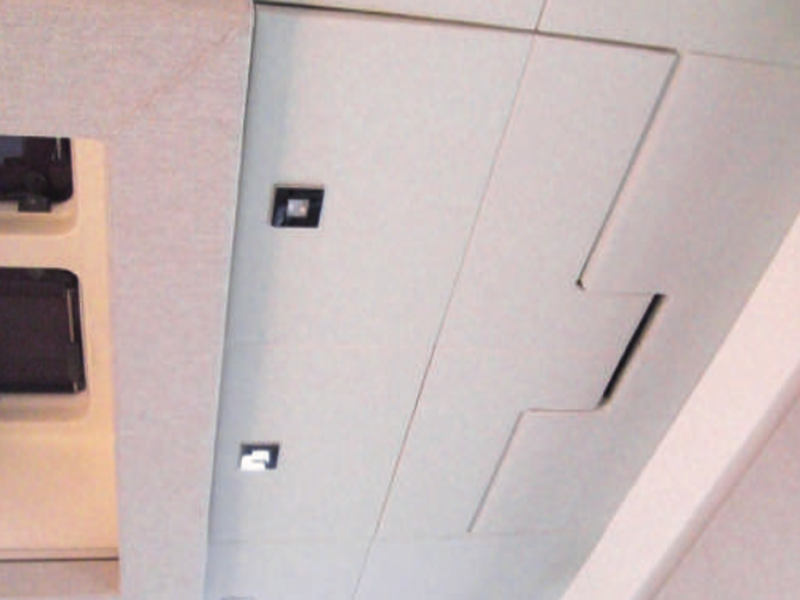

When closed, the TV is fully concealed behind the ceiling lining (not supplied), ensuring a perfectly flush finish. This configuration maintains a clean and minimalist aesthetic, particularly appreciated in modern yacht interiors, where visual clutter must be avoided. The NL0447 is therefore well suited to main saloons, owner’s cabins or guest areas on motor yachts and sailing yachts alike.
The system operates on a 24V DC power supply, standard in the marine environment, and is supplied with a radio remote control. The electric movement is smooth and progressive, with controlled opening and closing times of approximately 20 seconds. An electric locking system secures the mechanism in the closed position, preventing unwanted movement and eliminating vibrations during navigation.
The opening angle of the screen is adjustable between 90° and 100°, allowing installers to fine-tune the viewing angle depending on ceiling height and seating configuration. Unlike larger models in the range, the NL0447 does not include a swivel function, making it a robust and straightforward solution where fixed orientation is sufficient.
Manufactured from electro-galvanized steel and powder-coated aluminium, the structure is designed to withstand the specific constraints of the marine environment. The standard finish is RAL 9010 satin white, blending discreetly with most yacht headliners. Other finishes may be available on request for custom projects.
Specifications
- Product reference: NL0447
- Type: Ceiling-mounted electric TV lift (interior use)
- Power supply: 24V DC
- Maximum TV size: Up to 32”
- Opening angle: Adjustable from 90° to 100°
- Swiveling function: No
- System weight (excluding TV): 31 kg
- Standard color: RAL 9010 satin white
- Main dimensions:
- A: 896 mm
- B: 912 mm
- C: 187 mm
- D: 810 mm
- Maximum TV dimensions:
- Height: 550 mm
- Thickness: 125 mm
- Width: 810 mm
Installation / Maintenance
Installation
- The NL0447 is designed for recessed installation into a ceiling structure.
- A precise cut-out matching the frame dimensions is required.
- The ceiling structure must be sufficiently rigid to support the system weight and dynamic loads.
- Electrical connection must be made to a protected 24V DC line, in accordance with marine electrical standards.
- Installation is recommended to be carried out by a qualified marine professional.
Maintenance
- Minimal maintenance is required under normal use.
- Periodic inspection of fixings and electrical connections is recommended.
- Clean visible parts with a dry or slightly damp cloth.
- A light application of suitable lubricant on moving parts can be carried out during annual servicing.
Our review
✔️ Pros :
- Perfectly concealed installation for premium yacht interiors.
- Compact design ideal for limited ceiling spaces.
- Electric locking system prevents vibration during navigation.
- Quiet and smooth operation.
- Marine-grade materials and finishes.
❌ Cons :
- Limited to TVs up to 32”.
- No swiveling or orientation adjustment once deployed.
- Interior use only.
Conclusion
The NL0447 ceiling TV lift is an excellent choice for yacht owners and professionals looking for a discreet, reliable and aesthetically refined solution for small to medium-sized screens. Its compact footprint and clean ceiling integration make it particularly suitable for cabins and saloons where space and design coherence are critical. If your project requires screen rotation or larger TV sizes, other models in the ceiling lift range should be considered. For fixed viewing positions and elegant concealment, the NL0447 remains a highly relevant marine solution.
Good to Know
- Designed exclusively for interior installations.
- Ceiling lining or finishing panel not included.
- Supplied with radio remote control.
- TV not included.
- Ensure adequate ceiling depth before specification.
